Tesa-Hite 700 digital height gauge 00730044

Tesa-Hite 700 digital height gauge 00730044

Call for Price
Out of stock
SKU
00730044

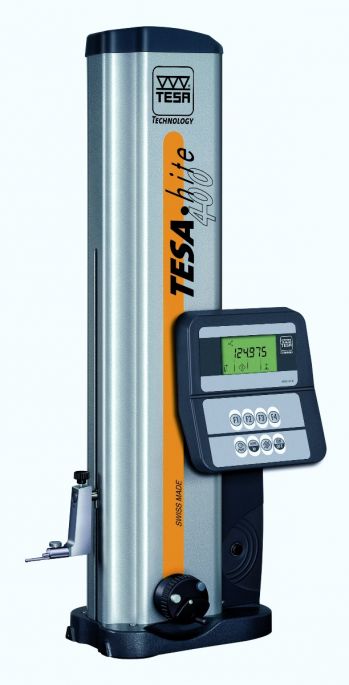

TESA-HITE 400 / 700

By their robustness and reliability, the TESA-HITE 400 and 700 provided with its
optoelectronic incremental rule (TESA patented) measurement system are ideally
suited for applications in the workshop.
Their battery power gives them full autonomy.
Each version allows, among other things, the entry height dimensions or staged,
the diameter, the distance between two grooves or two holes and groove width

TESA-HITE 400 / 700

By their robustness and reliability, the TESA-HITE 400 and 700 provided with its
optoelectronic incremental rule (TESA patented) measurement system are ideally
suited for applications in the workshop.
Their battery power gives them full autonomy.
Each version allows, among other things, the entry height dimensions or staged,
the diameter, the distance between two grooves or two holes and groove width.

–– Integrated air-bearing for easy displacement across the granite plate.
–– Electronics totally protected against oil and water splashing, dust particles
(IP65).
–– Control panel with numerical display to 0,0001 / 0,001 / 0,01 mm or 0.00001 /
0.0001 / 0.001 in.
–– Dynamic probing of the workpiece with a constant measuring force.
–– Easiness, high reliability when checking bores or shafts using TESA’s unique
device for automatic detection of the culmination point – patented.
–– Acoustic signal to acknowledge value capture, also conveniently programmable.
–– Ability to measure any deviation in parallelism.
–– Possible use of a digital sensor for determining perpendicularity errors with
stated angle of the linear regression line.
–– Patented TESA’s opto-electronic system. Long-lasting stability of the glass
scale for unbroken high accuracy.
–– Large LC display with symbols for the measuring functions.
–– Zero-setting anywhere within the measuring range.
–– PRESET function for entering any given value.
–– Metric/inch conversion.
–– RS 232 data output.
–– SCS calibration certificate provided with each height gauge.
