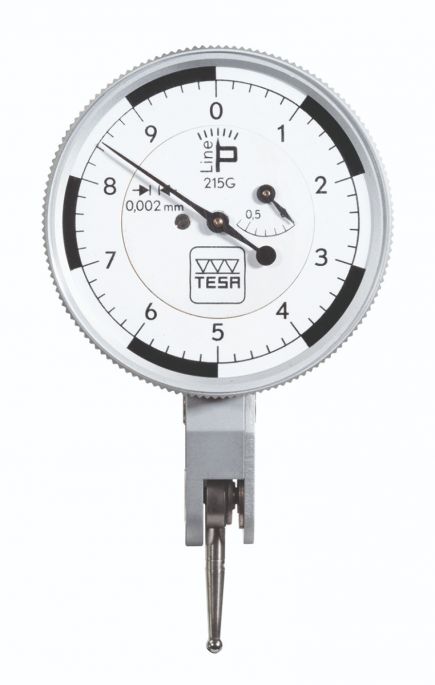

Tesa Lever-type dial test indicator P-Line 215G, 0.002 mm graduation, 01810405

Tesa Lever-type dial test indicator P-Line 215G, 0.002 mm graduation, 01810405

In stock


  • Part number 01810405
    Short designation P-LINE 215G lever-type dial test indicator, standard
    Complete designation P-LINE 215G analogue lever-type dial test indicator, standard, 0,6 mm, 0,002 mm, Ø 40 mm
    Measuring range [mm] 0,6
    Circular scale 0 ÷ 5 ÷ 10
    Dial, Ø [mm] 40
    Travel / revolution [mm] 0,1
    Resolution [mm] 0,002
    Probe length [mm] 18
    Measuring force [N] 0,3
    Weight [g] 59
    Weight [lbs] 0,1301


The new P-LINE range reflects all the quality and high precision of the well-known COMPAC brand. The benchmark in the field of lever-type dial test indicators, the success of these instruments is due to the long measurement range of up to 3 mm. The key lengths and available measurement distances are the longest on the market, while guaranteeing exceptional metrological performance (ISO 9493). The lever-type dial test indicator is invaluable for the recording of errors of form and position. Ideal for measuring axial and radial runout. Combined with decades of metrological expertise, the high-quality materials used make this new range an undisputed reference. The dial has been modernized with better readability thanks to larger numbers, a pure white dial for greater contrast and a new design of the circular segments.

Measuring range up to 3 mm
• Measuring insert stylus up to 36 mm
• Precision movement mounted on rubies
• Secondary pointer with revolution counter
• Movement with a very robust construction

More Information
range .080-.100" /  2-2.5mm
model type lever indicator Standard
Dial Face Diameter 40mm
Display Analogue
Display Type Metric
Dial Revolution .1mm
Length 18mm
graduation .002mm
Circular Scale dial gauges 0-5-10
waterproof No
spc output No
