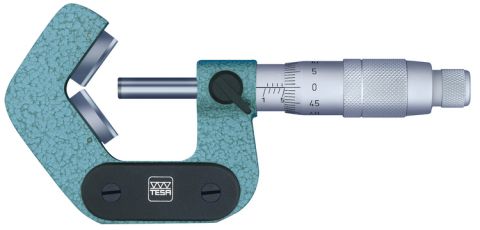

Tesa 00410102 ISOMASTER AS Micrometer with Prismatic Measuring Faces 5-25mm , Five-Flute V-Anvil (108')
SKU
00410102
The micrometer ISOMASTER AS is used for measuring test pieces with an odd number of grooves such as milling cutters, taps, drills and spline shafts as well as poliygons. It can also determine roundness errors on cylindrical workpieces.
The aperture angle of the prism is designed for workpiees having 3 or 5 flutes or their multiples.
The micrometer ISOMASTER AS is used for measuring test pieces with an odd number of grooves such as milling cutters, taps, drills and spline shafts as well as poliygons. It can also determine roundness errors on cylindrical workpieces.
The aperture angle of the prism is designed for workpiees having 3 or 5 flutes or their multiples.
| range | 5-25mm |
|---|---|
| Manufacturer | Tesa |
| spc output | No |
| graduation | .01mm |
| Display Type | Metric |
| Display | Vernier |
| waterproof | No |
| Spindle pitch | .559mm |
| Setting Standards Included | No |
