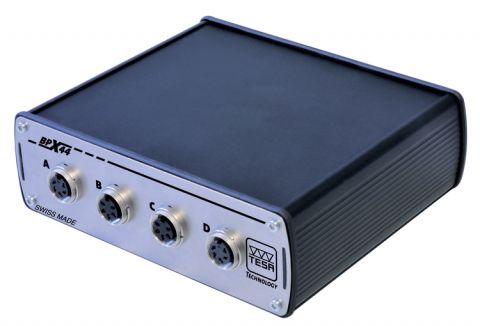

TESA 05030010 Tesa probe Interface box BPX, 4 probe inputs

TESA 05030010 Tesa probe Interface box BPX, 4 probe inputs

£906.00
In stock
SKU
05030010

BPX supports standard half-bridge TESA probes while TWIN Station supports standard half-bridge wireless TESA probes. Connection to a computer simply through USB cable included in the scope of supply, as well as TESA TIS Software Interface software.

Modular system available in 2 versions (BPX and TWIN Station) for the conversion of measured signals to digital values and transmission of these values to a computer. These units are key components for multigauging inspection fixtures for centralised process control systems.
  • Signal inputs – 1 to 4 TESA standard half-bridge probes
  • Signal output - digital, RS232 through USB port
  • - Direct connection to the computer’s USB port.
  • - Stand Alone operating mode: program routine via the computer, enabling the BPX box to execute a simple measuring function with classification signal relay via connector Sub-D 15P.
  • - Optimal adaptation for various measuring applications, for example, connection of 16 probes thanks to serial USB connections on 4 BPX boxes.
  • - Increased functional reliability and high precision.
  • - Increased immunity to negative environmental effects, whether of electrical origin or provoked by liquid and solid contaminants.
  • -BPX is compatible and can be used with TWIN station.
  • -TIS interface software is included in the BPX (part number 05030012) for display of measured values. Possibility of indicating tolerance values and simple functions +A, -A, +A+B, +A-B, export of values to a .csv file.

BPX supports standard half-bridge TESA probes while TWIN Station supports standard half-bridge wireless TESA probes. Connection to a computer simply through USB cable included in the scope of supply, as well as TESA TIS Software Interface software.

Modular system available in 2 versions (BPX and TWIN Station) for the conversion of measured signals to digital values and transmission of these values to a computer. These units are key components for multigauging inspection fixtures for centralised process control systems.
  • Signal inputs – 1 to 4 TESA standard half-bridge probes
  • Signal output - digital, RS232 through USB port
  • - Direct connection to the computer’s USB port.
  • - Stand Alone operating mode: program routine via the computer, enabling the BPX box to execute a simple measuring function with classification signal relay via connector Sub-D 15P.
  • - Optimal adaptation for various measuring applications, for example, connection of 16 probes thanks to serial USB connections on 4 BPX boxes.
  • - Increased functional reliability and high precision.
  • - Increased immunity to negative environmental effects, whether of electrical origin or provoked by liquid and solid contaminants.
  • -BPX is compatible and can be used with TWIN station.
  • -TIS interface software is included in the BPX (part number 05030012) for display of measured values. Possibility of indicating tolerance values and simple functions +A, -A, +A+B, +A-B, export of values to a .csv file.
