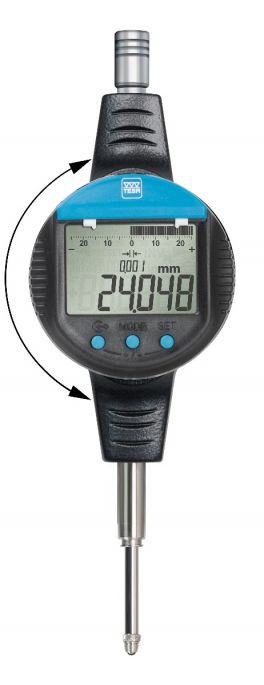

Tesa Digico 610 MI 01930257 Digital plunger 25mm travel .001mm resolution
TESA DIGICO 600
–– Measuring modes ABS/REL.
–– Dual LC Display.
–– Display rotation through 270°. Same goes for the key functions.
–– Mechanical tolerance marks.
–– Graphical display of tolerance limits.
Measuring functions and modes
ON – Auto OFF – PRESET mode – Tolerance mode – Measured value storage
• Max • Min • Max-Min (TIR) – Data output – Counting sense reversal – Keypad
lock – Metric/Inch units – Full RESET.
TESA DIGICO 600
–– Measuring modes ABS/REL.
–– Dual LC Display.
–– Display rotation through 270°. Same goes for the key functions.
–– Mechanical tolerance marks.
–– Graphical display of tolerance limits.
Measuring functions and modes
ON – Auto OFF – PRESET mode – Tolerance mode – Measured value storage
• Max • Min • Max-Min (TIR) – Data output – Counting sense reversal – Keypad
lock – Metric/Inch units – Full RESET.
| range | 0-1"/0-25mm |
|---|---|
| Manufacturer | Tesa |
| Display | Digital |
| Display Type | Inch/Metric |
| resolution | .00005"/.001mm |
| Dial Face Diameter | 57.1mm |
| spc output | Yes |
| Shock Proof | No |
| waterproof | No |
| Accuracy | .005mm |
| repeatability | .002mm |
