Tesa-Hite Magna 400 00730082 digital height gauge workshop grade

Tesa-Hite Magna 400 00730082 digital height gauge workshop grade

£2,981.00
In stock
SKU
00730082

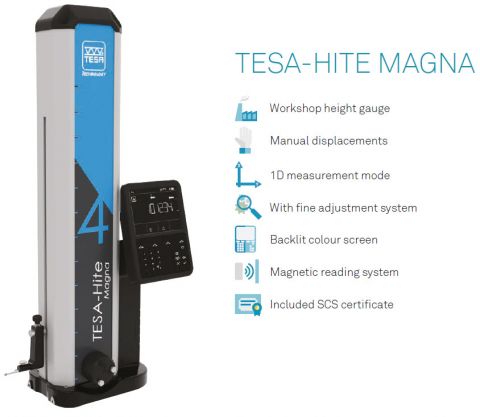

TESA HITE MAGNA 400

Equipped with the Magna-µ-System measuring system, these 1D manual height gauges are particularly suitable for harsh conditions. Thanks to their robustness and their high protection level, they are very robust and specifically designed for rough production environments where a high penetration of dust particles and the frequent splashing of liquids (water, oil etc.) are common.


 • PANEL

- Protected against the penetration of liquids or dust (IP65)
- Big colour screen for better reading in dimly lit surroundings
- Black display background for excellent contrast
- Large numbers displayed on the screen (21 mm) for optimal readability
- Keyboard with few buttons for easy learning without confusion

• AUTONOMY

- Long battery life (60h) to avoid too frequent recharging

• MEASURE

- Philosophy of use similar to tablets or smartphones
- Quick access to the first measurement from start up (<4s) for a significant time saving
 - Magnetic measuring system (patented) ensuring functioning in the extreme conditions of the workshop
- QUICKCENTER DYNAMIC technology integrated to efficiently determine the culmination points
- Context-based online help to avoid incorrect use and bad results
- The interface can be customized according to the user's wishes

• ISO 17025 Acceredited CALIBRATION CERTIFICATE - FREE OF CHARGE

Measuring force 1,5 ± 0,5 N
Units mm / in
Standard Factory standard
Resolution 0,001 / 0,005 / 0,01 mm 0.0001 / 0.0002 / 0.001 in
Zero Fixed
Coefficient of linear expansion (12 ± 1,5) x 10-6 K-1
Material Cast iron base
Degree of protection Measuring system: IP55 Panel: IP65
Particular characteristic Integrated fine adjustment
Weights 400 model: 15 kg 700 model: 18 kg
Power supply External power supply or integrated rechargeable battery
Function(s) Manual displacement of the measuring probe
Autonomie ≈ 60 h
Included in delivery SCS calibration certificate Declaration of conformity
Data output TLC
