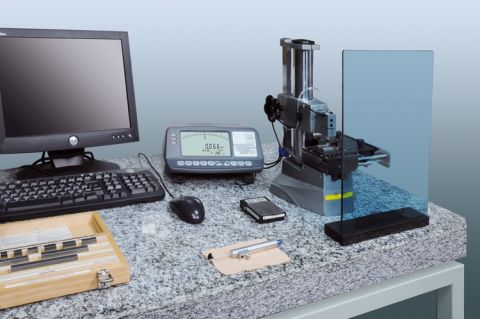

TESA UPC gauge block comparator equipped with single and dual template system without computer 05930013

TESA UPC gauge block comparator equipped with single and dual template system without computer 05930013

£18,189.00
In stock
SKU
05930013

TESA UPC gauge block comparator equipped with single and dual template system

TESA UPC – for Comparative Measurement
TESA UPC Gauge Block Comparator for Comparative Measurement

  • Measures gauge blocks of same nominal length by comparison.
  • Comes with the new template system for positioning the gauge blocks.
  • Single or dual template system for optimum ease of gauge handling.
  • Features TESA high-precision inductive probes.
  • Allows ultra-precise temperature measurement, integrated.
  • Transfers on-line all measured length and temperature values.
  • Executes computer-aided data processing with all required correction values included.
  • Performs calibrations that meet the requirements of both ISO standards and EA guidelines (EAL – European cooperation for Accreditation of Laboratories).
  • Includes an execution for greater accuracy along with a calibration certificate

TESA UPC is specially designed for the calibration or dimensional inspection of gauge blocks with nominal
lenghts ranging from 0,5 to 100 mm.

The configuration, which consists of two probes aligned opposite one another, associated with both the concept and quality of the measuring system provides full guarantee for an extra low uncertainty of measurement. Although TESA UPC is mainly intended for manufacturers and end-users of gauge blocks, this comparator is also widely used in nationally accreditedlaboratories.

TESA UPC gauge block comparator equipped with single and dual template system

TESA UPC – for Comparative Measurement
TESA UPC Gauge Block Comparator for Comparative Measurement

  • Measures gauge blocks of same nominal length by comparison.
  • Comes with the new template system for positioning the gauge blocks.
  • Single or dual template system for optimum ease of gauge handling.
  • Features TESA high-precision inductive probes.
  • Allows ultra-precise temperature measurement, integrated.
  • Transfers on-line all measured length and temperature values.
  • Executes computer-aided data processing with all required correction values included.
  • Performs calibrations that meet the requirements of both ISO standards and EA guidelines (EAL – European cooperation for Accreditation of Laboratories).
  • Includes an execution for greater accuracy along with a calibration certificate

TESA UPC is specially designed for the calibration or dimensional inspection of gauge blocks with nominal
lenghts ranging from 0,5 to 100 mm.

The configuration, which consists of two probes aligned opposite one another, associated with both the concept and quality of the measuring system provides full guarantee for an extra low uncertainty of measurement. Although TESA UPC is mainly intended for manufacturers and end-users of gauge blocks, this comparator is also widely used in nationally accreditedlaboratories.
